Conveyor rollers and idlers

Conveyor rollers and idlers built from ERW/seamless steel tube with precision bearings and multi-labyrinth seals, sealed for life.

About our Conveyor Rollers & Idlers

We supply conveyor rollers and idlers for bulk material handling, including flat belt idlers, flat and troughed belt training idlers, troughed belt rubber idlers and return belt rubber idlers.

Rollers use precision smooth-surface ERW and seamless steel tube as per IS 9295, EN-8 spindles, deep groove ball bearings with C3 clearance and double multi-labyrinth seals, and are lubricated and sealed for life. Sizes follow IS 8598 for belt widths as per IS 4776, or can be made to suit your existing conveyor frame.

Key features

  • High quality
  • Durable & reliable
  • Corrosion resistant
  • Long service life
  • Precision engineering
  • Strong & tough
Material
IS 9295 · IS 8598

Construction

  • Shell: precision smooth-surface ERW and seamless steel tube as per IS 9295
  • Ends: pressed steel bearing housings with calibrated seats, welded to the tube
  • Spindle: EN-8 bars, precision ground at bearing and seal seats
  • Bearings: single-row deep groove ball bearings with C3 clearance
  • Sealing: double multi-labyrinth seal, inner seal, dust cover and rain cap
  • Lubrication: hi-lithium grease, sealed for life
  • Sizes as per IS 8598 for belt widths per IS 4776, or to suit your existing frame
Product range

Conveyor Rollers & Idlers range

Steel conveyor roller with rubber end seal
Firstam Pump RollerAvailable with side rollers inclined at 20° and 30°; 45° or other troughing angles for special cases.

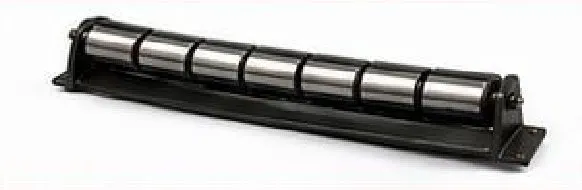

Flat belt conveyor idler with rubber rings on a frame
Flat Belt IdlerProtects the belt by absorbing impacts and transferring point loads.

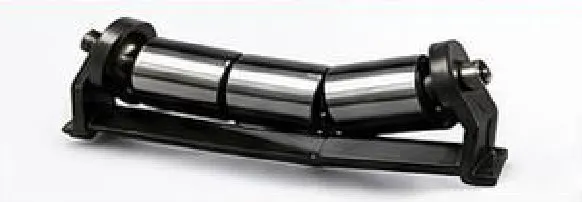

Flat belt training idler with steel rollers and guide brackets
Flat Belt Training IdlerAutomatically trains the belt and protects edges from misalignment damage. Standard types 200 and 300.
Self-aligning troughed belt training idler with three steel rollers
Troughed Belt Training IdlerSelf-aligning troughing idler that keeps the belt on track. Standard types 200 and 300.

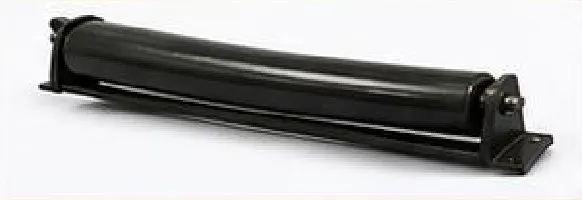

Rubber-covered troughed belt idler roller with end brackets
Troughed Belt Rubber IdlerSupports the return run of the belt. Single-roller with end brackets; two-roller type also available.

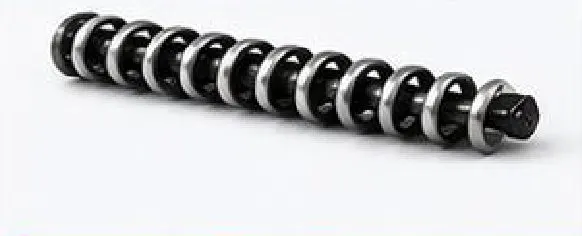

Return belt idler with spaced rubber discs on a steel shaft
Return Belt Rubber IdlerFor wet or sticky materials, or where corrosion resistance against chemical action is required.
